Expansion Joint Systems

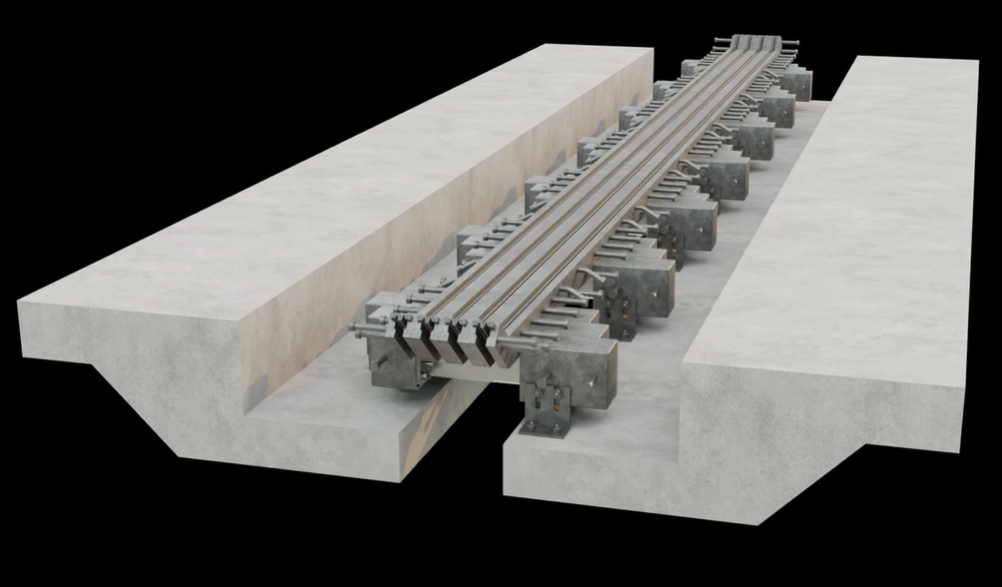

Steelflex Modular Expansion Joint Systems
Description
- Highly engineered system comprised of dynamic load bearing center beams welded to multiple support bars and cast-in-place into expansion joint.
- Steel center and edge beams with mechanically locked elastomeric sealing elements.
- Robust rubber support bar springs and bearings.
- Fatigue tested and designed.
- From 4 to 28.35 inches of longitudinal movement.
- Maximum +/-.79 inches of transverse displacement.
- Watertight and replaceable sealing elements.
- Certified by American Institute of Steel Construction.
- Installation and removal tools available.
